Description
Description
Standards
-
NationalKS C IEC 60502-1
적용범위
주거 및 상업적 용도의 건물내 및 산업용 배전 회로에 사용하는 전력용 케이블
전기설비 기술 기준령에 준한 트레이용 난연 케이블
적용규격
KS C IEC 60502-1
K 60502-1
재료 및 구조
1. 도체 : 2등급(연선) 연동선
2. 절연 : 가교 폴리에틸렌(XLPE), 내열 온도 90℃
3. 연합 : 2심 이상인 경우 절연된 선심을 원형으로 꼬음
4. 피복 : 흑색 저독성 난연 폴리올레핀)
색상
1심 : 자연색(XLPE)
2심 : 흑, 백
3심 : 흑, 백, 적
4심 : 흑, 백, 적, 녹녹
제품인증
KETI (전기용품안전인증), 환경표지인증

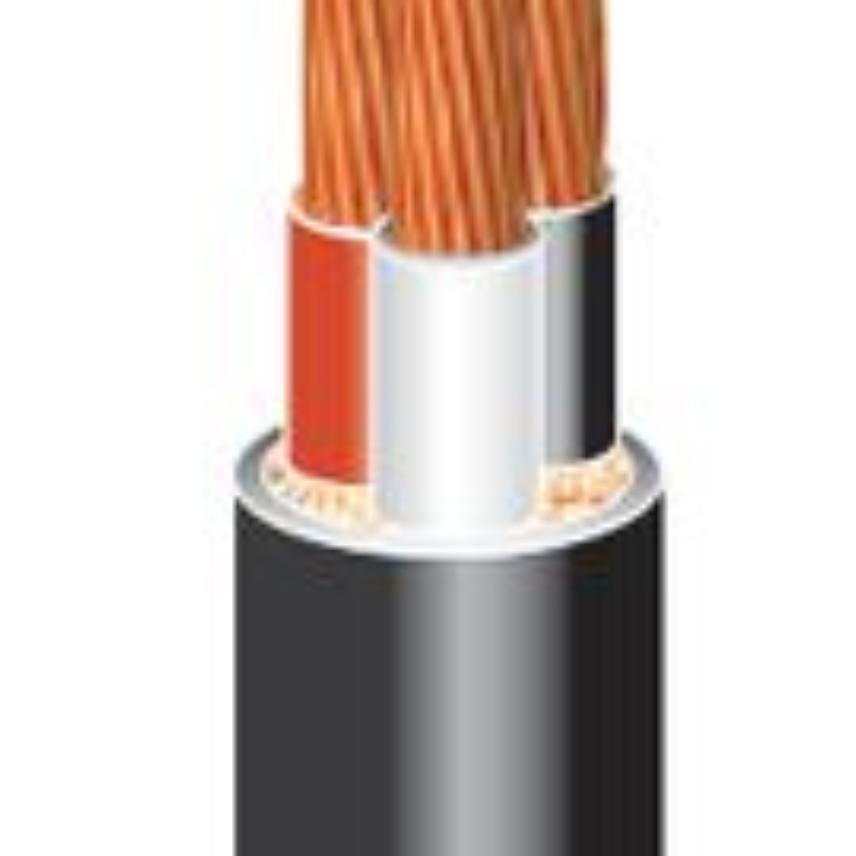

HFCO 0.6/1kV design
| ##image:56202## |
도체 절연 충진물 바인드 테이프 피복 |
절연저항 값은 규정이 없고 절연저항 상수의 값만 규정되어 있음 ( K=min. 3.67MΪ.km at 90℃) : 단심 & 다심
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
연동선
도체 타입
2등급 (연선)
절연
LH 폴리올레핀
피복
LSZH
전기적 특성
전기적 특성
시험전압
3500 V
정격전압 Uo/U (Um)
0,6/1 kV
사용 특성
사용 특성
운용온도, 범위
-15 ... 90 °C
난연
IEC 60332-3 Cat. C
설치 시 벤딩 요소
15 (xD)
연기밀도
ASTME 662
Resources
Resources
Current capacity table XLPE insulation multicore single phase
XLPE or EPR insulation, two loaded conductors/copper or aluminium
Conductor temperature: 90 °C, ambient temperature: 30 °C in air, 20 °C in ground
| 도체 단면적 |
|
|
|
|
|
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 19.0 | 0.0 | 18.5 | 0.0 | 22.0 | 0.0 | 24.0 | 0.0 | 25.0 | 0.0 | 27.0 | 0.0 | 26.0 | 0.0 |
| 2.5 | 26.0 | 20.0 | 25.0 | 19.5 | 30.0 | 23.0 | 33.0 | 26.0 | 33.0 | 26.0 | 35.0 | 0.0 | 36.0 | 28.0 |
| 4.0 | 35.0 | 27.0 | 33.0 | 26.0 | 40.0 | 31.0 | 45.0 | 35.0 | 43.0 | 33.0 | 46.0 | 0.0 | 49.0 | 38.0 |
| 6.0 | 45.0 | 35.0 | 42.0 | 33.0 | 51.0 | 40.0 | 58.0 | 45.0 | 53.0 | 42.0 | 58.0 | 0.0 | 63.0 | 49.0 |
| 10.0 | 61.0 | 48.0 | 57.0 | 45.0 | 69.0 | 54.0 | 80.0 | 62.0 | 71.0 | 55.0 | 77.0 | 0.0 | 86.0 | 67.0 |
| 16.0 | 81.0 | 64.0 | 76.0 | 60.0 | 91.0 | 72.0 | 107.0 | 84.0 | 91.0 | 71.0 | 100.0 | 76.0 | 115.0 | 91.0 |
| 25.0 | 106.0 | 84.0 | 99.0 | 78.0 | 119.0 | 94.0 | 138.0 | 101.0 | 116.0 | 90.0 | 129.0 | 98.0 | 149.0 | 108.0 |
| 35.0 | 131.0 | 103.0 | 121.0 | 96.0 | 146.0 | 115.0 | 171.0 | 126.0 | 139.0 | 108.0 | 155.0 | 117.0 | 185.0 | 135.0 |
| 50.0 | 158.0 | 125.0 | 145.0 | 115.0 | 175.0 | 138.0 | 209.0 | 154.0 | 164.0 | 128.0 | 183.0 | 139.0 | 225.0 | 164.0 |
| 70.0 | 200.0 | 158.0 | 183.0 | 145.0 | 221.0 | 175.0 | 269.0 | 198.0 | 203.0 | 158.0 | 225.0 | 170.0 | 289.0 | 211.0 |
| 95.0 | 241.0 | 191.0 | 220.0 | 175.0 | 265.0 | 210.0 | 328.0 | 241.0 | 239.0 | 186.0 | 270.0 | 204.0 | 352.0 | 257.0 |
| 120.0 | 278.0 | 220.0 | 253.0 | 201.0 | 305.0 | 242.0 | 382.0 | 280.0 | 271.0 | 211.0 | 306.0 | 233.0 | 410.0 | 300.0 |
| 150.0 | 318.0 | 253.0 | 290.0 | 230.0 | 334.0 | 261.0 | 441.0 | 324.0 | 306.0 | 238.0 | 343.0 | 261.0 | 473.0 | 346.0 |
| 185.0 | 362.0 | 288.0 | 329.0 | 262.0 | 384.0 | 300.0 | 506.0 | 371.0 | 343.0 | 267.0 | 387.0 | 296.0 | 542.0 | 397.0 |
| 240.0 | 424.0 | 338.0 | 386.0 | 307.0 | 459.0 | 358.0 | 599.0 | 439.0 | 395.0 | 307.0 | 448.0 | 343.0 | 641.0 | 470.0 |
| 300.0 | 486.0 | 387.0 | 442.0 | 352.0 | 532.0 | 415.0 | 693.0 | 508.0 | 446.0 | 346.0 | 502.0 | 386.0 | 741.0 | 543.0 |
|
A1 Insulated conductors in conduit in a thermally insulated wall |
|
A2 Multi-core cable in conduit in a thermally insulated wall |
|
B2 Multi-core cable in conduit on a wooden wall |
|
C Single-core or multi-core cable on a wooden wall |
|
D1 Multi-core cable in ducts in the ground |
|
D2 Multi-core cables designed to be buried directly in the ground |
|
E Multi-core cable in free air |
Current capacity table XLPE insulation multicore three phase
XLPE or EPR insulation, three loaded conductors/copper or aluminium –
Conductor temperature: 90 °C, ambient temperature: 30 °C in air, 20 °C in ground
| 도체 단면적 |
|
|
|
|
|
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 17.0 | 0.0 | 16.5 | 0.0 | 19.5 | 0.0 | 22.0 | 0.0 | 21.0 | 0.0 | 23.0 | 0.0 | 23.0 | 0.0 |
| 2.5 | 23.0 | 19.0 | 22.0 | 18.0 | 26.0 | 21.0 | 30.0 | 24.0 | 28.0 | 22.0 | 30.0 | 0.0 | 32.0 | 24.0 |
| 4.0 | 31.0 | 25.0 | 30.0 | 24.0 | 35.0 | 28.0 | 40.0 | 32.0 | 36.0 | 28.0 | 39.0 | 0.0 | 42.0 | 32.0 |
| 6.0 | 40.0 | 32.0 | 38.0 | 31.0 | 44.0 | 35.0 | 52.0 | 41.0 | 44.0 | 35.0 | 49.0 | 0.0 | 54.0 | 42.0 |
| 10.0 | 54.0 | 44.0 | 51.0 | 41.0 | 60.0 | 48.0 | 71.0 | 57.0 | 58.0 | 46.0 | 65.0 | 0.0 | 75.0 | 58.0 |
| 16.0 | 73.0 | 58.0 | 68.0 | 55.0 | 80.0 | 64.0 | 96.0 | 76.0 | 75.0 | 59.0 | 84.0 | 64.0 | 100.0 | 77.0 |
| 25.0 | 95.0 | 76.0 | 89.0 | 71.0 | 105.0 | 84.0 | 119.0 | 90.0 | 96.0 | 75.0 | 107.0 | 82.0 | 127.0 | 97.0 |
| 35.0 | 117.0 | 94.0 | 109.0 | 87.0 | 128.0 | 103.0 | 147.0 | 112.0 | 115.0 | 90.0 | 129.0 | 98.0 | 158.0 | 120.0 |
| 50.0 | 141.0 | 113.0 | 130.0 | 104.0 | 154.0 | 124.0 | 179.0 | 136.0 | 135.0 | 106.0 | 153.0 | 117.0 | 192.0 | 146.0 |
| 70.0 | 179.0 | 142.0 | 164.0 | 131.0 | 194.0 | 156.0 | 229.0 | 174.0 | 167.0 | 130.0 | 188.0 | 144.0 | 246.0 | 187.0 |
| 95.0 | 216.0 | 171.0 | 197.0 | 157.0 | 233.0 | 188.0 | 278.0 | 211.0 | 197.0 | 154.0 | 226.0 | 172.0 | 298.0 | 227.0 |
| 120.0 | 249.0 | 197.0 | 227.0 | 180.0 | 268.0 | 216.0 | 322.0 | 245.0 | 223.0 | 174.0 | 257.0 | 197.0 | 346.0 | 263.0 |
| 150.0 | 285.0 | 226.0 | 259.0 | 206.0 | 300.0 | 240.0 | 371.0 | 283.0 | 251.0 | 197.0 | 287.0 | 220.0 | 399.0 | 304.0 |
| 185.0 | 324.0 | 256.0 | 295.0 | 233.0 | 340.0 | 272.0 | 424.0 | 323.0 | 281.0 | 220.0 | 324.0 | 250.0 | 456.0 | 347.0 |
| 240.0 | 380.0 | 300.0 | 346.0 | 273.0 | 398.0 | 318.0 | 500.0 | 382.0 | 324.0 | 253.0 | 375.0 | 290.0 | 538.0 | 409.0 |
| 300.0 | 435.0 | 344.0 | 396.0 | 313.0 | 455.0 | 354.0 | 576.0 | 440.0 | 365.0 | 286.0 | 419.0 | 326.0 | 621.0 | 471.0 |
|
A1 Insulated conductors in conduit in a thermally insulated wall |
|
A2 Multi-core cable in conduit in a thermally insulated wall |
|
B2 Multi-core cable in conduit on a wooden wall |
|
C Single-core or multi-core cable on a wooden wall |
|
D1 Multi-core cable in ducts in the ground |
|
D2 Multi-core cables designed to be buried directly in the ground |
|
E Multi-core cable in free air |
Current capacity table XLPE insulation single core single phase
XLPE or EPR insulation, two loaded conductors/copper or aluminium
Conductor temperature: 90 °C, ambient temperature: 30 °C in air, 20 °C in ground
| 도체 단면적 |
|
|
|
|
|
|
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 19.0 | 0.0 | 23.0 | 0.0 | 24.0 | 0.0 | 25.0 | 0.0 | 27.0 | 0.0 | 0.0 | 0.0 |
| 2.5 | 26.0 | 20.0 | 31.0 | 25.0 | 33.0 | 26.0 | 33.0 | 26.0 | 35.0 | 0.0 | 0.0 | 0.0 |
| 4.0 | 35.0 | 27.0 | 42.0 | 33.0 | 45.0 | 35.0 | 43.0 | 33.0 | 46.0 | 0.0 | 0.0 | 0.0 |
| 6.0 | 45.0 | 35.0 | 54.0 | 43.0 | 58.0 | 45.0 | 53.0 | 42.0 | 58.0 | 0.0 | 0.0 | 0.0 |
| 10.0 | 61.0 | 48.0 | 75.0 | 59.0 | 80.0 | 62.0 | 71.0 | 55.0 | 77.0 | 0.0 | 0.0 | 0.0 |
| 16.0 | 81.0 | 64.0 | 100.0 | 79.0 | 107.0 | 84.0 | 91.0 | 71.0 | 100.0 | 76.0 | 0.0 | 0.0 |
| 25.0 | 106.0 | 84.0 | 133.0 | 105.0 | 138.0 | 101.0 | 116.0 | 90.0 | 129.0 | 98.0 | 161.0 | 121.0 |
| 35.0 | 131.0 | 103.0 | 164.0 | 130.0 | 171.0 | 126.0 | 139.0 | 108.0 | 155.0 | 117.0 | 200.0 | 150.0 |
| 50.0 | 158.0 | 125.0 | 198.0 | 157.0 | 209.0 | 154.0 | 164.0 | 128.0 | 183.0 | 139.0 | 242.0 | 184.0 |
| 70.0 | 200.0 | 158.0 | 253.0 | 200.0 | 269.0 | 198.0 | 203.0 | 158.0 | 225.0 | 170.0 | 310.0 | 237.0 |
| 95.0 | 241.0 | 191.0 | 306.0 | 242.0 | 328.0 | 241.0 | 239.0 | 186.0 | 270.0 | 204.0 | 377.0 | 289.0 |
| 120.0 | 278.0 | 220.0 | 354.0 | 281.0 | 382.0 | 280.0 | 271.0 | 211.0 | 306.0 | 233.0 | 437.0 | 337.0 |
| 150.0 | 318.0 | 253.0 | 393.0 | 307.0 | 441.0 | 324.0 | 306.0 | 238.0 | 343.0 | 261.0 | 504.0 | 389.0 |
| 185.0 | 362.0 | 288.0 | 449.0 | 351.0 | 506.0 | 371.0 | 343.0 | 267.0 | 387.0 | 296.0 | 575.0 | 447.0 |
| 240.0 | 424.0 | 338.0 | 528.0 | 412.0 | 599.0 | 439.0 | 395.0 | 307.0 | 448.0 | 343.0 | 679.0 | 530.0 |
| 300.0 | 486.0 | 387.0 | 603.0 | 471.0 | 693.0 | 508.0 | 446.0 | 346.0 | 502.0 | 386.0 | 783.0 | 613.0 |
| 400.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 940.0 | 740.0 |
| 500.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1083.0 | 856.0 |
| 630.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1254.0 | 996.0 |
|
A1 Insulated conductors in conduit in a thermally insulated wall |
|
B1 Insulated conductors in conduit on a wooden wall |
|
C Single-core or multi-core cable on a wooden wall |
|
D1 Single core or Multi-core cable in ducts in the ground |
|
D2 Single core or Multi-core cables designed to be buried directly in the ground |
|
F Single-core flat cables, touching in free air |
Current capacity table XLPE insulation single core three phase
XLPE or EPR insulation, three loaded conductors/copper or aluminium –
Conductor temperature: 90 °C, ambient temperature: 30 °C in air, 20 °C in ground
| 도체 단면적 |
|
|
|
|
|
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 17.0 | 0.0 | 20.0 | 0.0 | 22.0 | 0.0 | 21.0 | 0.0 | 23.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2.5 | 23.0 | 19.0 | 28.0 | 22.0 | 30.0 | 24.0 | 28.0 | 22.0 | 30.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 4.0 | 31.0 | 25.0 | 37.0 | 29.0 | 40.0 | 32.0 | 36.0 | 28.0 | 39.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 6.0 | 40.0 | 32.0 | 48.0 | 38.0 | 52.0 | 41.0 | 44.0 | 35.0 | 49.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 10.0 | 54.0 | 44.0 | 66.0 | 52.0 | 71.0 | 57.0 | 58.0 | 46.0 | 65.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 16.0 | 73.0 | 58.0 | 88.0 | 71.0 | 96.0 | 76.0 | 75.0 | 59.0 | 84.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 25.0 | 95.0 | 76.0 | 117.0 | 93.0 | 119.0 | 90.0 | 96.0 | 75.0 | 107.0 | 64.0 | 141.0 | 107.0 | 135.0 | 103.0 |
| 35.0 | 117.0 | 94.0 | 144.0 | 116.0 | 147.0 | 112.0 | 115.0 | 90.0 | 129.0 | 82.0 | 176.0 | 135.0 | 169.0 | 129.0 |
| 50.0 | 141.0 | 113.0 | 175.0 | 140.0 | 179.0 | 136.0 | 135.0 | 106.0 | 153.0 | 98.0 | 216.0 | 165.0 | 207.0 | 159.0 |
| 70.0 | 179.0 | 142.0 | 222.0 | 179.0 | 229.0 | 174.0 | 167.0 | 130.0 | 188.0 | 117.0 | 279.0 | 215.0 | 268.0 | 206.0 |
| 95.0 | 216.0 | 171.0 | 269.0 | 217.0 | 278.0 | 211.0 | 197.0 | 154.0 | 226.0 | 144.0 | 342.0 | 264.0 | 328.0 | 253.0 |
| 120.0 | 249.0 | 197.0 | 312.0 | 251.0 | 322.0 | 245.0 | 223.0 | 174.0 | 257.0 | 172.0 | 400.0 | 308.0 | 383.0 | 296.0 |
| 150.0 | 285.0 | 226.0 | 342.0 | 267.0 | 371.0 | 283.0 | 251.0 | 197.0 | 287.0 | 197.0 | 464.0 | 358.0 | 444.0 | 343.0 |
| 185.0 | 324.0 | 256.0 | 384.0 | 300.0 | 424.0 | 323.0 | 281.0 | 220.0 | 324.0 | 220.0 | 533.0 | 413.0 | 510.0 | 395.0 |
| 240.0 | 380.0 | 300.0 | 450.0 | 351.0 | 500.0 | 382.0 | 324.0 | 253.0 | 375.0 | 250.0 | 634.0 | 492.0 | 607.0 | 471.0 |
| 300.0 | 435.0 | 344.0 | 514.0 | 402.0 | 576.0 | 440.0 | 365.0 | 286.0 | 419.0 | 290.0 | 736.0 | 571.0 | 703.0 | 547.0 |
| 400.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 326.0 | 868.0 | 694.0 | 823.0 | 663.0 |
| 500.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 998.0 | 806.0 | 946.0 | 770.0 |
| 630.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1151.0 | 942.0 | 1088.0 | 899.0 |
|
A1 Insulated conductors in conduit in a thermally insulated wall |
|
B1 Insulated conductors in conduit on a wooden wall |
|
C Single-core or multi-core cable on a wooden wall |
|
D1 Single core or Multi-core cable in ducts in the ground |
|
D2 Single core or Multi-core cables designed to be buried directly in the ground |
|
F Single-core flat cables, touching in free air |
|
Ft Single-core trefoil cables, touching in free air |
