HFIX solid - 1.5mm²
Nexans ref.
- 도체 타입 : 1등급 단선
- 도체 단면적: 1.5 mm²
- Maximum outer diameter: 3.3 mm
- 무게(근사치): 21 kg/km
HFIX solid - 2,5mm²
Nexans ref. 84031103
- 도체 타입 : 1등급 단선
- 도체 단면적: 2.5 mm²
- Maximum outer diameter: 4.0 mm
- 무게(근사치): 32 kg/km
HFIX solid - 4mm²
Nexans ref. 84009130
- 도체 타입 : 1등급 단선
- 도체 단면적: 4 mm²
- Maximum outer diameter: 4.6 mm
- 무게(근사치): 47 kg/km
HFIX solid - 6mm²
Nexans ref. 84009106
- 도체 타입 : 1등급 단선
- 도체 단면적: 6 mm²
- Maximum outer diameter: 5.2 mm
- 무게(근사치): 67 kg/km
HFIX solid - 10mm²
Nexans ref. 84009112
- 도체 타입 : 1등급 단선
- 도체 단면적: 10 mm²
- Maximum outer diameter: 6.5 mm
- 무게(근사치): 108 kg/km
HFIX solid - 16mm²
Nexans ref.
- 도체 타입 : 1등급 단선
- 도체 단면적: 16 mm²
- Maximum outer diameter: 8.0 mm
- 무게(근사치): 167 kg/km
HFIX solid - 25mm²
Nexans ref. 84018660
- 도체 타입 : 1등급 단선
- 도체 단면적: 25 mm²
- Maximum outer diameter: 10.1 mm
- 무게(근사치): 260 kg/km
HFIX solid - 35mm²
Nexans ref. 14018667
- 도체 타입 : 1등급 단선
- 도체 단면적: 35 mm²
- Maximum outer diameter: 11.3 mm
- 무게(근사치): 354 kg/km
HFIX solid - 50mm²
Nexans ref. 14018674
- 도체 타입 : 1등급 단선
- 도체 단면적: 50 mm²
- Maximum outer diameter: 13.2 mm
- 무게(근사치): 491 kg/km
HFIX solid - 70mm²
Nexans ref. 14018682
- 도체 타입 : 1등급 단선
- 도체 단면적: 70 mm²
- Maximum outer diameter: 15.1 mm
- 무게(근사치): 681 kg/km
HFIX solid - 95mm²
Nexans ref. 14019263
- 도체 타입 : 1등급 단선
- 도체 단면적: 95 mm²
- Maximum outer diameter: 17.6 mm
- 무게(근사치): 933 kg/km
HFIX solid - 120mm²
Nexans ref. 14018688
- 도체 타입 : 1등급 단선
- 도체 단면적: 120 mm²
- Maximum outer diameter: 19.4 mm
- 무게(근사치): 1162 kg/km
HFIX solid - 150mm²
Nexans ref. 14021098
- 도체 타입 : 1등급 단선
- 도체 단면적: 150 mm²
- Maximum outer diameter: 21.6 mm
- 무게(근사치): 1446 kg/km
HFIX solid - 185mm²
Nexans ref. 14027591
- 도체 타입 : 1등급 단선
- 도체 단면적: 185 mm²
- Maximum outer diameter: 24.1 mm
- 무게(근사치): 1808 kg/km
HFIX solid - 240mm²
Nexans ref.
- 도체 타입 : 1등급 단선
- 도체 단면적: 240 mm²
- Maximum outer diameter: 27.5 mm
- 무게(근사치): 2353 kg/km
HFIX solid - 300mm²
Nexans ref.
- 도체 타입 : 1등급 단선
- 도체 단면적: 300 mm²
- Maximum outer diameter: 30.6 mm
- 무게(근사치): 2948 kg/km
HFIX stranded - 1,5mm²
Nexans ref. 84009118
- 도체 타입 : 2등급 (연선)
- 도체 단면적: 1.5 mm²
- Maximum outer diameter: 3.4 mm
- 무게(근사치): 23 kg/km
HFIX stranded - 2,5mm²
Nexans ref.
- 도체 타입 : 2등급 (연선)
- 도체 단면적: 2.5 mm²
- Maximum outer diameter: 4.1 mm
- 무게(근사치): 33 kg/km
HFIX stranded - 4mm²
Nexans ref. 84009100
- 도체 타입 : 2등급 (연선)
- 도체 단면적: 4 mm²
- Maximum outer diameter: 4.7 mm
- 무게(근사치): 50 kg/km
HFIX stranded - 6mm²
Nexans ref.
- 도체 타입 : 2등급 (연선)
- 도체 단면적: 6 mm²
- Maximum outer diameter: 5.4 mm
- 무게(근사치): 71 kg/km
HFIX stranded - 10mm²
Nexans ref.
- 도체 타입 : 2등급 (연선)
- 도체 단면적: 10 mm²
- Maximum outer diameter: 7.0 mm
- 무게(근사치): 116 kg/km
Description
Description
Standards
-
International2014/68/EU
-
National11-SDMS-03, Rev.01; KS C 3341
적용범위
옥내에 사용되는 전기 시설물이나 전기기기의 배선에
사용되는 도체 최고 허용온도 90℃의 저독성 난연 가교 폴리올레핀 절연전선
적용규격
KS C 3341 : 저독성 난연 폴리올레핀 전력케이블 및 절연전선
재료 및 구조
1. 도체 : 1등급(단선) 또는 2등급(연선)의 연동선
2. 절연 : 내열온도 90℃의 저독성난연 가교 폴리올레핀
색상
표준색상은 흑, 백, 적, 녹, 황, 청

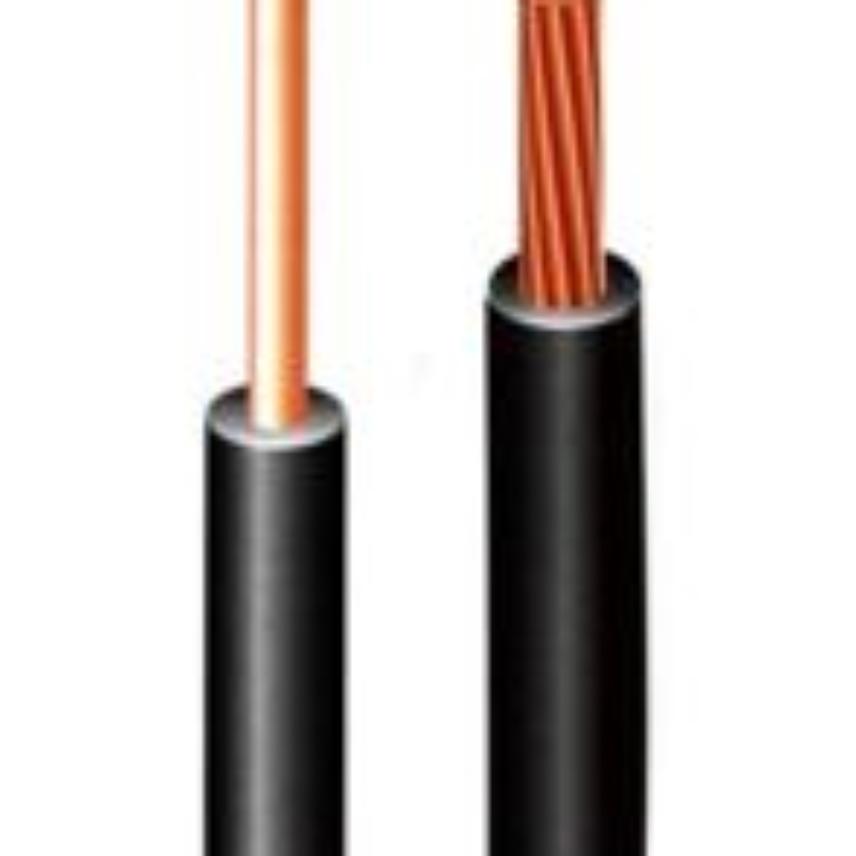

HFIX 450/750V
| ##image:57005## |
도체 절연 |
##image:57006## |
도체 절연 |
Characteristics
Characteristics
구조적 특성
구조적 특성
절연
XLPE
전기적 특성
전기적 특성
시험전압
2500 V
90°C에서 절연 저항
3.67 MOhm.km
정격전압 Uo/U (Um)
450/750 V
사용 특성
사용 특성
최대 운용 온도
90 °C
Resources
Resources
Current capacity table XLPE insulation single core single phase
XLPE or EPR insulation, two loaded conductors/copper or aluminium
Conductor temperature: 90 °C, ambient temperature: 30 °C in air, 20 °C in ground
| 도체 단면적 |
|
|
|
|
|
|
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 19.0 | 0.0 | 23.0 | 0.0 | 24.0 | 0.0 | 25.0 | 0.0 | 27.0 | 0.0 | 0.0 | 0.0 |
| 2.5 | 26.0 | 20.0 | 31.0 | 25.0 | 33.0 | 26.0 | 33.0 | 26.0 | 35.0 | 0.0 | 0.0 | 0.0 |
| 4.0 | 35.0 | 27.0 | 42.0 | 33.0 | 45.0 | 35.0 | 43.0 | 33.0 | 46.0 | 0.0 | 0.0 | 0.0 |
| 6.0 | 45.0 | 35.0 | 54.0 | 43.0 | 58.0 | 45.0 | 53.0 | 42.0 | 58.0 | 0.0 | 0.0 | 0.0 |
| 10.0 | 61.0 | 48.0 | 75.0 | 59.0 | 80.0 | 62.0 | 71.0 | 55.0 | 77.0 | 0.0 | 0.0 | 0.0 |
| 16.0 | 81.0 | 64.0 | 100.0 | 79.0 | 107.0 | 84.0 | 91.0 | 71.0 | 100.0 | 76.0 | 0.0 | 0.0 |
| 25.0 | 106.0 | 84.0 | 133.0 | 105.0 | 138.0 | 101.0 | 116.0 | 90.0 | 129.0 | 98.0 | 161.0 | 121.0 |
| 35.0 | 131.0 | 103.0 | 164.0 | 130.0 | 171.0 | 126.0 | 139.0 | 108.0 | 155.0 | 117.0 | 200.0 | 150.0 |
| 50.0 | 158.0 | 125.0 | 198.0 | 157.0 | 209.0 | 154.0 | 164.0 | 128.0 | 183.0 | 139.0 | 242.0 | 184.0 |
| 70.0 | 200.0 | 158.0 | 253.0 | 200.0 | 269.0 | 198.0 | 203.0 | 158.0 | 225.0 | 170.0 | 310.0 | 237.0 |
| 95.0 | 241.0 | 191.0 | 306.0 | 242.0 | 328.0 | 241.0 | 239.0 | 186.0 | 270.0 | 204.0 | 377.0 | 289.0 |
| 120.0 | 278.0 | 220.0 | 354.0 | 281.0 | 382.0 | 280.0 | 271.0 | 211.0 | 306.0 | 233.0 | 437.0 | 337.0 |
| 150.0 | 318.0 | 253.0 | 393.0 | 307.0 | 441.0 | 324.0 | 306.0 | 238.0 | 343.0 | 261.0 | 504.0 | 389.0 |
| 185.0 | 362.0 | 288.0 | 449.0 | 351.0 | 506.0 | 371.0 | 343.0 | 267.0 | 387.0 | 296.0 | 575.0 | 447.0 |
| 240.0 | 424.0 | 338.0 | 528.0 | 412.0 | 599.0 | 439.0 | 395.0 | 307.0 | 448.0 | 343.0 | 679.0 | 530.0 |
| 300.0 | 486.0 | 387.0 | 603.0 | 471.0 | 693.0 | 508.0 | 446.0 | 346.0 | 502.0 | 386.0 | 783.0 | 613.0 |
| 400.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 940.0 | 740.0 |
| 500.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1083.0 | 856.0 |
| 630.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1254.0 | 996.0 |
|
A1 Insulated conductors in conduit in a thermally insulated wall |
|
B1 Insulated conductors in conduit on a wooden wall |
|
C Single-core or multi-core cable on a wooden wall |
|
D1 Single core or Multi-core cable in ducts in the ground |
|
D2 Single core or Multi-core cables designed to be buried directly in the ground |
|
F Single-core flat cables, touching in free air |
Current capacity table XLPE insulation single core three phase
XLPE or EPR insulation, three loaded conductors/copper or aluminium –
Conductor temperature: 90 °C, ambient temperature: 30 °C in air, 20 °C in ground
| 도체 단면적 |
|
|
|
|
|
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 1.5 | 17.0 | 0.0 | 20.0 | 0.0 | 22.0 | 0.0 | 21.0 | 0.0 | 23.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2.5 | 23.0 | 19.0 | 28.0 | 22.0 | 30.0 | 24.0 | 28.0 | 22.0 | 30.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 4.0 | 31.0 | 25.0 | 37.0 | 29.0 | 40.0 | 32.0 | 36.0 | 28.0 | 39.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 6.0 | 40.0 | 32.0 | 48.0 | 38.0 | 52.0 | 41.0 | 44.0 | 35.0 | 49.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 10.0 | 54.0 | 44.0 | 66.0 | 52.0 | 71.0 | 57.0 | 58.0 | 46.0 | 65.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 16.0 | 73.0 | 58.0 | 88.0 | 71.0 | 96.0 | 76.0 | 75.0 | 59.0 | 84.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 25.0 | 95.0 | 76.0 | 117.0 | 93.0 | 119.0 | 90.0 | 96.0 | 75.0 | 107.0 | 64.0 | 141.0 | 107.0 | 135.0 | 103.0 |
| 35.0 | 117.0 | 94.0 | 144.0 | 116.0 | 147.0 | 112.0 | 115.0 | 90.0 | 129.0 | 82.0 | 176.0 | 135.0 | 169.0 | 129.0 |
| 50.0 | 141.0 | 113.0 | 175.0 | 140.0 | 179.0 | 136.0 | 135.0 | 106.0 | 153.0 | 98.0 | 216.0 | 165.0 | 207.0 | 159.0 |
| 70.0 | 179.0 | 142.0 | 222.0 | 179.0 | 229.0 | 174.0 | 167.0 | 130.0 | 188.0 | 117.0 | 279.0 | 215.0 | 268.0 | 206.0 |
| 95.0 | 216.0 | 171.0 | 269.0 | 217.0 | 278.0 | 211.0 | 197.0 | 154.0 | 226.0 | 144.0 | 342.0 | 264.0 | 328.0 | 253.0 |
| 120.0 | 249.0 | 197.0 | 312.0 | 251.0 | 322.0 | 245.0 | 223.0 | 174.0 | 257.0 | 172.0 | 400.0 | 308.0 | 383.0 | 296.0 |
| 150.0 | 285.0 | 226.0 | 342.0 | 267.0 | 371.0 | 283.0 | 251.0 | 197.0 | 287.0 | 197.0 | 464.0 | 358.0 | 444.0 | 343.0 |
| 185.0 | 324.0 | 256.0 | 384.0 | 300.0 | 424.0 | 323.0 | 281.0 | 220.0 | 324.0 | 220.0 | 533.0 | 413.0 | 510.0 | 395.0 |
| 240.0 | 380.0 | 300.0 | 450.0 | 351.0 | 500.0 | 382.0 | 324.0 | 253.0 | 375.0 | 250.0 | 634.0 | 492.0 | 607.0 | 471.0 |
| 300.0 | 435.0 | 344.0 | 514.0 | 402.0 | 576.0 | 440.0 | 365.0 | 286.0 | 419.0 | 290.0 | 736.0 | 571.0 | 703.0 | 547.0 |
| 400.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 326.0 | 868.0 | 694.0 | 823.0 | 663.0 |
| 500.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 998.0 | 806.0 | 946.0 | 770.0 |
| 630.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1151.0 | 942.0 | 1088.0 | 899.0 |
|
A1 Insulated conductors in conduit in a thermally insulated wall |
|
B1 Insulated conductors in conduit on a wooden wall |
|
C Single-core or multi-core cable on a wooden wall |
|
D1 Single core or Multi-core cable in ducts in the ground |
|
D2 Single core or Multi-core cables designed to be buried directly in the ground |
|
F Single-core flat cables, touching in free air |
|
Ft Single-core trefoil cables, touching in free air |
