250V (FA)-MPY, MPYC(-S), MPYCS, MPYCY(-S), MPYCYS

Products

(FA)MPY 250V

Nexans ref. GWDAG1100021

  • Packaging: Drum (m)
  • 코어수: 2
  • Nominal outer diameter: 8.7 mm
  • Approximate weight: 85 kg/m



(FA)MPY 250V

Nexans ref. GWDAG1100041

  • Packaging: Drum (m)
  • 코어수: 4
  • Nominal outer diameter: 9.9 mm
  • Approximate weight: 125 kg/m



(FA)MPY 250V

Nexans ref. GWDAG1100071

  • Packaging: Drum (m)
  • 코어수: 7
  • Nominal outer diameter: 11.9 mm
  • Approximate weight: 190 kg/m



(FA)MPY 250V

Nexans ref. GWDAG1100121

  • Packaging: Drum (m)
  • 코어수: 12
  • Nominal outer diameter: 15.5 mm
  • Approximate weight: 315 kg/m



(FA)MPY 250V

Nexans ref. GWDAG1100191

  • Packaging: Drum (m)
  • 코어수: 19
  • Nominal outer diameter: 18.3 mm
  • Approximate weight: 465 kg/m



(FA)MPY 250V

Nexans ref. GWDAG1100271

  • Packaging: Drum (m)
  • 코어수: 27
  • Nominal outer diameter: 22.1 mm
  • Approximate weight: 665 kg/m



(FA)MPY 250V

Nexans ref. GWDAG1100371

  • Packaging: Drum (m)
  • 코어수: 37
  • Nominal outer diameter: 24.8 mm
  • Approximate weight: 870 kg/m



(FA)MPY 250V

Nexans ref. GWDAG1100441

  • Packaging: Drum (m)
  • 코어수: 44
  • Nominal outer diameter: 28.0 mm
  • Approximate weight: 1160 kg/m



(FA)MPY 250V

Nexans ref. GWDAG1100771

  • Packaging: Drum (m)
  • 코어수: 77
  • Nominal outer diameter: 35.9 mm
  • Approximate weight: 1790 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100021

  • Packaging: Drum (m)
  • 코어수: 2
  • Nominal outer diameter: 10.0 mm
  • Approximate weight: 155 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100041

  • Packaging: Drum (m)
  • 코어수: 4
  • Nominal outer diameter: 11.2 mm
  • Approximate weight: 205 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100071

  • Packaging: Drum (m)
  • 코어수: 7
  • Nominal outer diameter: 13.2 mm
  • Approximate weight: 290 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100121

  • Packaging: Drum (m)
  • 코어수: 12
  • Nominal outer diameter: 16.8 mm
  • Approximate weight: 445 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100191

  • Packaging: Drum (m)
  • 코어수: 19
  • Nominal outer diameter: 19.6 mm
  • Approximate weight: 615 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100271

  • Packaging: Drum (m)
  • 코어수: 27
  • Nominal outer diameter: 23.4 mm
  • Approximate weight: 840 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100371

  • Packaging: Drum (m)
  • 코어수: 37
  • Nominal outer diameter: 26.1 mm
  • Approximate weight: 1070 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100441

  • Packaging: Drum (m)
  • 코어수: 44
  • Nominal outer diameter: 29.3 mm
  • Approximate weight: 1290 kg/m



(FA)MPYC 250V

Nexans ref. GWDGG1100771

  • Packaging: Drum (m)
  • 코어수: 77
  • Nominal outer diameter: 37.7 mm
  • Approximate weight: 2180 kg/m



(FA)MPYC-S 250V

Nexans ref. GWDIG1100021

  • Packaging: Drum (m)
  • 코어수: 2
  • Nominal outer diameter: 11.2 mm
  • Approximate weight: 210 kg/m



(FA)MPYC-S 250V

Nexans ref. GWDIG1100041

  • Packaging: Drum (m)
  • 코어수: 4
  • Nominal outer diameter: 12.9 mm
  • Approximate weight: 300 kg/m



(FA)MPYC-S 250V

Nexans ref. GWDIG1100071

  • Packaging: Drum (m)
  • 코어수: 7
  • Nominal outer diameter: 15.2 mm
  • Approximate weight: 435 kg/m



(FA)MPYC-S 250V

Nexans ref. GWDIG1100121

  • Packaging: Drum (m)
  • 코어수: 12
  • Nominal outer diameter: 19.5 mm
  • Approximate weight: 685 kg/m



(FA)MPYC-S 250V

Nexans ref. GWDIG1100191

  • Packaging: Drum (m)
  • 코어수: 19
  • Nominal outer diameter: 22.8 mm
  • Approximate weight: 980 kg/m



(FA)MPYC-S 250V

Nexans ref. GWDIG1100271

  • Packaging: Drum (m)
  • 코어수: 27
  • Nominal outer diameter: 27.3 mm
  • Approximate weight: 1360 kg/m



(FA)MPYC-S 250V

Nexans ref. GWDIG1100371

  • Packaging: Drum (m)
  • 코어수: 37
  • Nominal outer diameter: 30.5 mm
  • Approximate weight: 1760 kg/m



(FA)MPYC-S 250V

Nexans ref. GWDIG1100441

  • Packaging: Drum (m)
  • 코어수: 44
  • Nominal outer diameter: 35.0 mm
  • Approximate weight: 2240 kg/m



(FA)MPYCS 250V

Nexans ref. GWDHG1100021

  • Packaging: Drum (m)
  • 코어수: 2
  • Nominal outer diameter: 10.7 mm
  • Approximate weight: 205 kg/m



(FA)MPYCS 250V

Nexans ref. GWDHG1100041

  • Packaging: Drum (m)
  • 코어수: 4
  • Nominal outer diameter: 11.9 mm
  • Approximate weight: 260 kg/m



(FA)MPYCS 250V

Nexans ref. GWDHG1100071

  • Packaging: Drum (m)
  • 코어수: 7
  • Nominal outer diameter: 13.9 mm
  • Approximate weight: 355 kg/m



(FA)MPYCS 250V

Nexans ref. GWDHG1100121

  • Packaging: Drum (m)
  • 코어수: 12
  • Nominal outer diameter: 17.6 mm
  • Approximate weight: 540 kg/m



(FA)MPYCS 250V

Nexans ref. GWDHG1100191

  • Packaging: Drum (m)
  • 코어수: 19
  • Nominal outer diameter: 20.6 mm
  • Approximate weight: 735 kg/m



(FA)MPYCS 250V

Nexans ref. GWDHG1100271

  • Packaging: Drum (m)
  • 코어수: 27
  • Nominal outer diameter: 24.3 mm
  • Approximate weight: 995 kg/m



(FA)MPYCS 250V

Nexans ref. GWDHG1100371

  • Packaging: Drum (m)
  • 코어수: 37
  • Nominal outer diameter: 27.0 mm
  • Approximate weight: 1240 kg/m



(FA)MPYCS 250V

Nexans ref. GWDHG1100441

  • Packaging: Drum (m)
  • 코어수: 44
  • Nominal outer diameter: 30.2 mm
  • Approximate weight: 1480 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100021

  • Packaging: Drum (m)
  • 코어수: 2
  • Nominal outer diameter: 12.0 mm
  • Approximate weight: 205 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100041

  • Packaging: Drum (m)
  • 코어수: 4
  • Nominal outer diameter: 13.2 mm
  • Approximate weight: 260 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100071

  • Packaging: Drum (m)
  • 코어수: 7
  • Nominal outer diameter: 15.2 mm
  • Approximate weight: 350 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100121

  • Packaging: Drum (m)
  • 코어수: 12
  • Nominal outer diameter: 19.0 mm
  • Approximate weight: 530 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100191

  • Packaging: Drum (m)
  • 코어수: 19
  • Nominal outer diameter: 22.0 mm
  • Approximate weight: 720 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100271

  • Packaging: Drum (m)
  • 코어수: 27
  • Nominal outer diameter: 26.0 mm
  • Approximate weight: 980 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100371

  • Packaging: Drum (m)
  • 코어수: 37
  • Nominal outer diameter: 28.9 mm
  • Approximate weight: 1240 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100441

  • Packaging: Drum (m)
  • 코어수: 44
  • Nominal outer diameter: 32.1 mm
  • Approximate weight: 1470 kg/m



(FA)MPYCY 250V

Nexans ref. GWDMG1100771

  • Packaging: Drum (m)
  • 코어수: 77
  • Nominal outer diameter: 41.4 mm
  • Approximate weight: 2470 kg/m



(FA)MPYCY-S 250V

Nexans ref. GWDOG1100021

  • Packaging: Drum (m)
  • 코어수: 2
  • Nominal outer diameter: 13.2 mm
  • Approximate weight: 260 kg/m



(FA)MPYCY-S 250V

Nexans ref. GWDOG1100041

  • Packaging: Drum (m)
  • 코어수: 4
  • Nominal outer diameter: 14.9 mm
  • Approximate weight: 360 kg/m



(FA)MPYCY-S 250V

Nexans ref. GWDOG1100071

  • Packaging: Drum (m)
  • 코어수: 7
  • Nominal outer diameter: 17.4 mm
  • Approximate weight: 515 kg/m



(FA)MPYCY-S 250V

Nexans ref. GWDOG1100121

  • Packaging: Drum (m)
  • 코어수: 12
  • Nominal outer diameter: 21.9 mm
  • Approximate weight: 795 kg/m



(FA)MPYCY-S 250V

Nexans ref. GWDOG1100191

  • Packaging: Drum (m)
  • 코어수: 19
  • Nominal outer diameter: 25.4 mm
  • Approximate weight: 1120 kg/m



(FA)MPYCY-S 250V

Nexans ref. GWDOG1100271

  • Packaging: Drum (m)
  • 코어수: 27
  • Nominal outer diameter: 30.1 mm
  • Approximate weight: 1540 kg/m



(FA)MPYCY-S 250V

Nexans ref. GWDOG1100371

  • Packaging: Drum (m)
  • 코어수: 37
  • Nominal outer diameter: 33.5 mm
  • Approximate weight: 1970 kg/m



(FA)MPYCY-S 250V

Nexans ref. GWDOG1100441

  • Packaging: Drum (m)
  • 코어수: 44
  • Nominal outer diameter: 38.4 mm
  • Approximate weight: 2500 kg/m



(FA)MPYCYS 250V

Nexans ref. GWDNG1100021

  • Packaging: Drum (m)
  • 코어수: 2
  • Nominal outer diameter: 12.7 mm
  • Approximate weight: 255 kg/m



(FA)MPYCYS 250V

Nexans ref. GWDNG1100041

  • Packaging: Drum (m)
  • 코어수: 4
  • Nominal outer diameter: 13.9 mm
  • Approximate weight: 315 kg/m



(FA)MPYCYS 250V

Nexans ref. GWDNG1100071

  • Packaging: Drum (m)
  • 코어수: 7
  • Nominal outer diameter: 15.9 mm
  • Approximate weight: 420 kg/m



(FA)MPYCYS 250V

Nexans ref. GWDNG1100121

  • Packaging: Drum (m)
  • 코어수: 12
  • Nominal outer diameter: 19.8 mm
  • Approximate weight: 625 kg/m



(FA)MPYCYS 250V

Nexans ref. GWDNG1100191

  • Packaging: Drum (m)
  • 코어수: 19
  • Nominal outer diameter: 23.0 mm
  • Approximate weight: 850 kg/m



(FA)MPYCYS 250V

Nexans ref. GWDNG1100271

  • Packaging: Drum (m)
  • 코어수: 27
  • Nominal outer diameter: 26.9 mm
  • Approximate weight: 1140 kg/m



(FA)MPYCYS 250V

Nexans ref. GWDNG1100371

  • Packaging: Drum (m)
  • 코어수: 37
  • Nominal outer diameter: 29.8 mm
  • Approximate weight: 1410 kg/m



(FA)MPYCYS 250V

Nexans ref. GWDNG1100441

  • Packaging: Drum (m)
  • 코어수: 44
  • Nominal outer diameter: 33.2 mm
  • Approximate weight: 1680 kg/m



Description

Description

Standards

  • Test
    IEC 60332-3 Cat.A
  • 국가 표준
    JIS C 3410-1999; JIS C 3410-1999

Application

  • Power circuit upto 250V, Lighting & Control circuit
  • Fixed installation lighting & control in both explosion risk and safe areas, general purposes.

This product is part of our Shiplink® offer

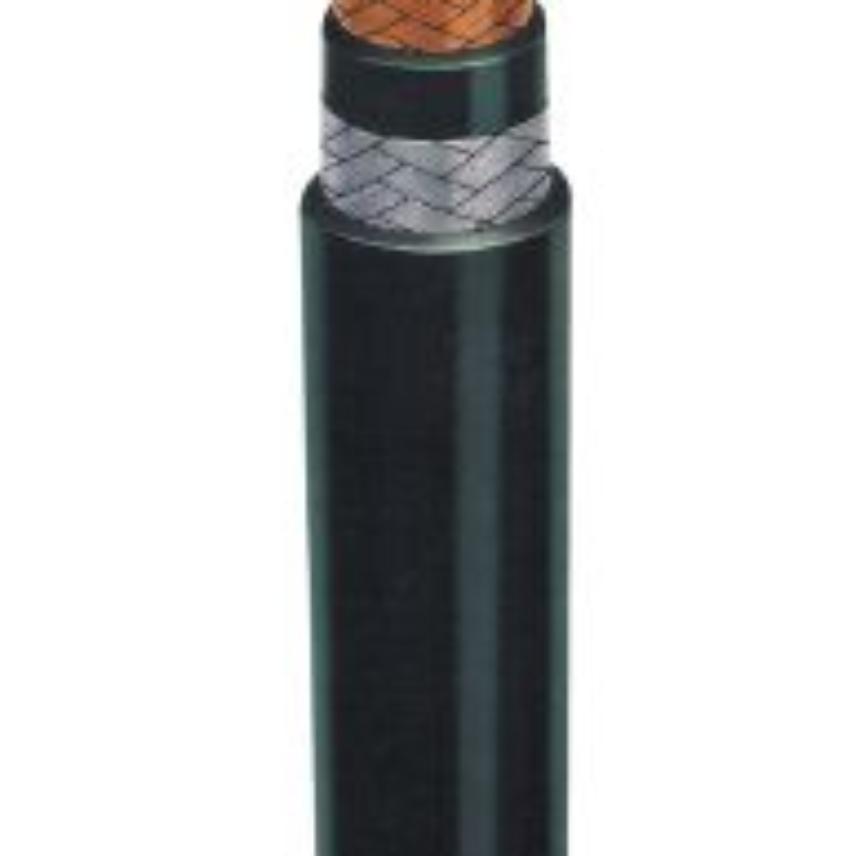

Construction details

  • Conductor : Tinned annealed copper wire, stranded
  • Insulation : EPR insulation identified
  • Individual Copper wire shield braid : End of ‘-S’ type
  • Cabling with filler
  • Common Copper wire shield braid : End of ‘S’ type
  • PVC sheath
  • Metal wire armour : Galvanized steel wire braiding
  • Paint : In case of protective covered cable, paint is dispensable.
  • PVC protective covering



Standard applied

  • Design guideline : JIS C 3410 (1999)
  • Material properties :
    • JIS C 3410 Insulation, EPR JIS C 3410 Sheath, PVC
  • Flame retardant :
    • IEC 60332-1
    • IEC 60332-3, Cat. A, ‘FA--’ type only
  • Cable marking of cold properties:
    - ‘ICE’ type : CSA C22.2 No. 03, Cold bending -40℃, Cold impact -35℃
    - ‘-35DEG.’ type : CSA C22.2 No. 03, Cold bending -35℃
    - Any other cable marking can be applicable, when purchaser required



Identification of color

By numbering on White colored insulation

Characteristics

Characteristics

구조적 특성

구조적 특성

Armour type
Galvanized steel wire braiding
Conductor flexibility
Stranded class 2
Conductor shape
Circular stranded (RM)
도체 재료
Copper or tinned copper
스크린
Tinned copper braid
절연
EPR
피복
PVC

치수

치수

도체 단면적
1 mm²
Diameter over armour
1.0 mm
Diameter over insulation
0.0 mm
도체지름
1.3 mm
절연평균두께
0.7 mm

전기적 특성

전기적 특성

20° C에서 최대 도체 DC저항
18.2 Ohm/km
시험전압
1500 V
정격전압 Uo/U (Um)
150 / 250 V

사용 특성

사용 특성

난연
IEC 60332-3 Cat. A
